TANOUE Tradename on guns made for Ojanguren y Vidosa, Eibar, Spain, c.1930.
TERRIBLE Tradename on pistols from Hijos de Calixto Arrizabalaga, Eibar, Spain, c.1930.
TEUF-TEUF Tradename on pistols made by Arizmendi y Goenaga of Eibar, Spain, and should not be confused with the Belgian guns with a similar name.
THUNDER Tradename on pistols of Martin Bascaran, Eibar, Spain on guns made for Alberdi, Teleria y Cia., c.1912-19.  6.35 cal.
TIGRE-Garate, Anitua Handgun maker in Eibar, Spain, c.1915.
TIPO  Trade name  DE ARMAS DEFUEGO - GUERNICA”,
TITAN Tradename of Retolaza Hermano of Eibar, Spain on pistols.
TITANIC Tradename of Retolaza Hermanos on pistols.
TORPILLE
TROCAOLA- Gastanaga, Tracaola y Cia
TRIOMPHE Tradename on pistols from Apaoloza Hermanos, Eibar, Spain.
TRIPLEX Tradename of Domingo Acha on pistols.
TRIUMPH-Garate, Anitua Handgun maker in Eibar, Spain, c.1915.
TRUST SUPRA Tradename on pistols from by Fab. d'Armes de Guerre de Grand Precision, Eibar, Spain. 6.35 mm
TRUST Tradename on pistols from by Fab. d'Armes de Guerre de Grand Precision, Eibar, Spain.  6.35 mm
U.A.E. Abbreviation for Union Armera Eibaressa.
ULTRA PLUS-Tradename of Gabilondo y Cia
UNION Tradename on pistols made by Unceta y Cia. of Guernica, Spain, c.1924-31.  for Seytres
UNIQUE  unknown
UNIS Tradename used by Santigo Salaberrin (Spain
VELOSTARK Tradename of Garate Hermanos on handguns
VENCEDOR Tradename used by San Martin y Cia. of Eibar, Spain on pistols.
VENCEDOR Tradename of Fabrica De Armas, Durango Code VD
VENUS Tradename on pistols from Tomas de Urizar y Cia.
VERITABLE
VERITABLE  EXPRESS
VESTA Tradename of Hijos de A. Echevarria, Eibar, Spain.  code HE
VICTOR Tradename on pistols from Francisco Arizmendi, Eibar, Spain, c. 1916.
VICTORIA Tradename of pistols from Esperanza y Unceta (Astra).
VICTOR BERNEDO  Tradename of Victor Bernedo y Cia. code VB
VICTORY Tradename on pistols of M. Zulaica y Cia. of Eibar, Spain-revolver
VILAR Tradename used by Retolaza Hermanos.
VINCITOR Tradename of pistols from M. Zulaica y Cia.
VITE Tradename of Echave & Arizmendi of Eibar, Spain on pistols, c. 1913
VULCAIN
WACO  Soc. Espanola de Armas y Municiones, Eibar, Spain
WALDMAN Tradename used by Francisco Arizmendi.
WALMAN Tradename on pistols of Francisco Arizmendi y Goenaga, Eibar, Spain.
WOLF
YDEAL Tradename used by Francisco Arizmendi.
ZULAICA Manufacturer of pistols M. Zulaica y Cia., Eibar, Spain.  code ZC


Year code proof that will be found on these guns if at all.  Prior to 1927 they were not date coded and I am not sure how far into the Civil War they were made.  It is not likely they would have been made later than 1938 as the Basque region had fallen to Franco late in 1938.

A-1927
B-1928
C-1929
CH-1930
D-1931
E-1932
F-1933
G-1934
H-1935
I-1936
J-1937
K-1938

These proofmarks will be found on guns that were proofed.

------



Field stripping a Ruby type gun

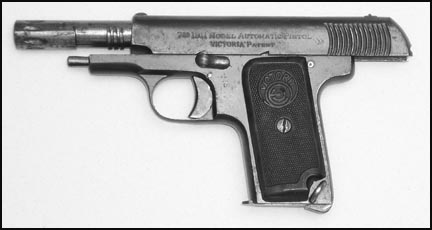

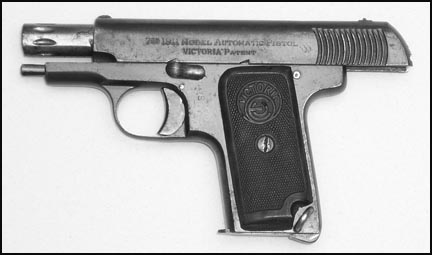

The safety on this gun also provided an aid to disassembly by locking the slide open to remove the barrel.

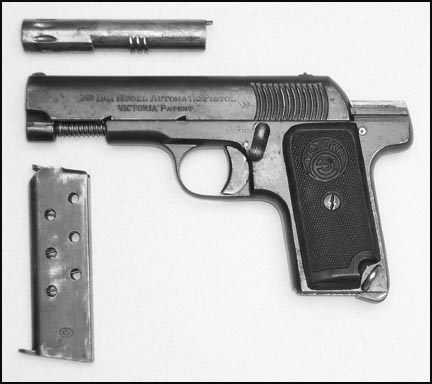

The barrel had a series of 3 lugs which would unlock from the frame, when rotated 90 degrees, allowing the barrel to be removed from the frame pulled forward and then rotated back the 90 degrees to be removed through the front of the slide.  The 6.35 mm usually has two Lugs.

After the barrel and magazine are removed the slide will go forward off of the frame.  This is sometimes hard as the hammer makes contact with the slide on occasions and requires an extra effort.
