Spanish Blue Steel

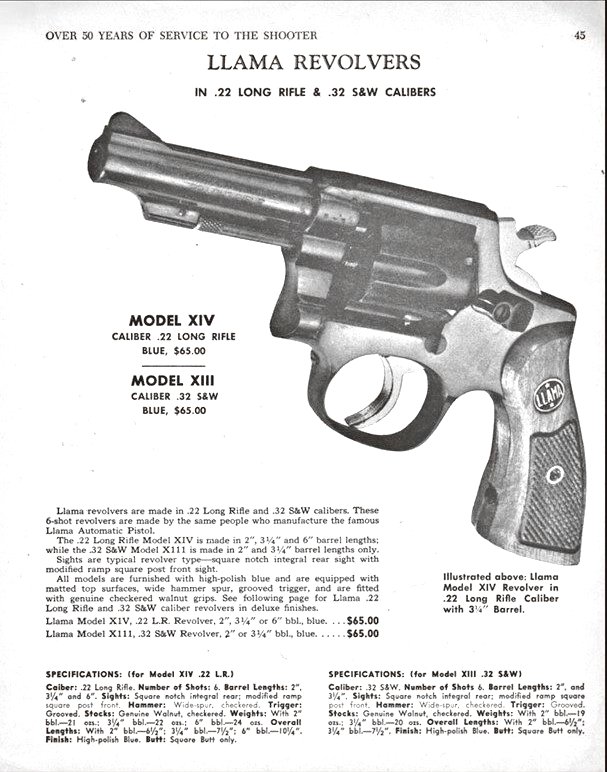

Llama Revolver










Model XIV 22 lr  3 1/4"  barrel.
Barrel length's 2, 3 1/4 and  6", Square notched  integral rear sight, modified ramp square post front.  Wide hammer spur grooved trigger and checkered walnut grips.  Gun shown is actually a
Ruby Extra with Plastic grips, same gun.

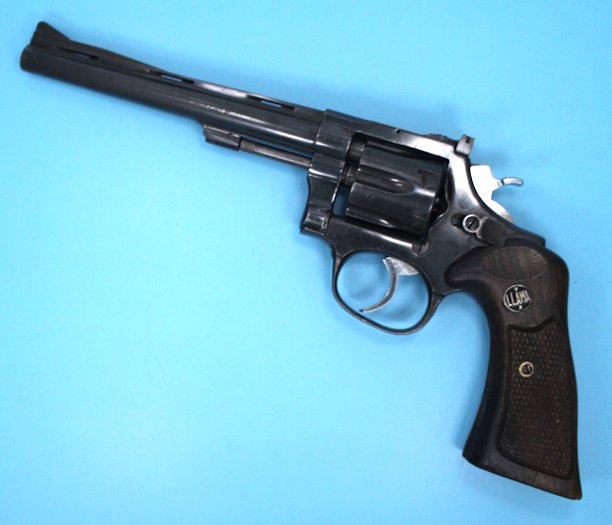

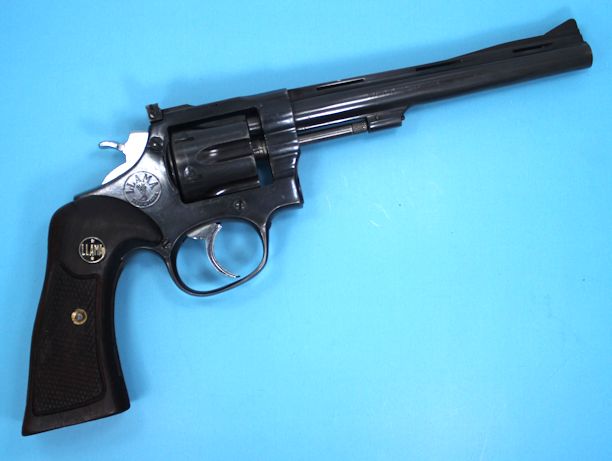

Model XXIV
22lr
Match

This gun is much smaller than the Comanche I below.
Wide spur target hammer, wide grooved target trigger, 6" barrel with vent rib, Micrometer
adjustable target sights, checkered target grips, 6 shot, weight 26 ozs.

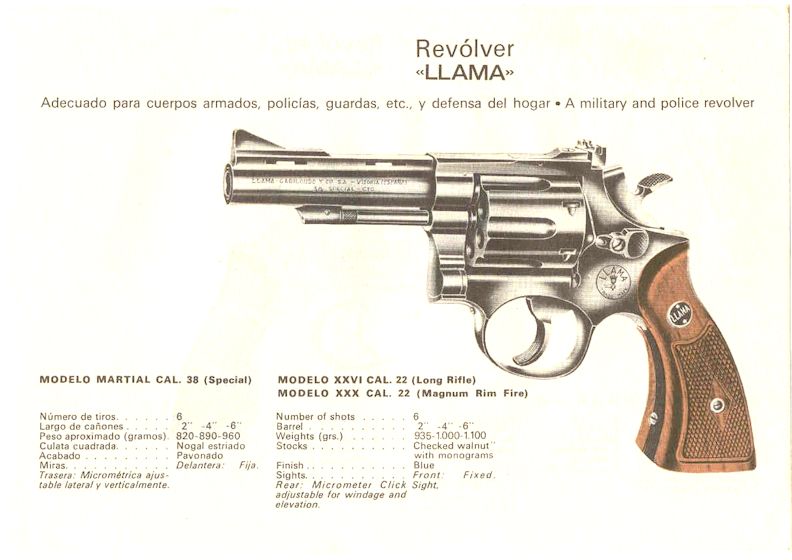

Llama model XXVI  Martial  22lr
Barrel lengths 2, 4, 6", checkered Walnut grips with monogram, sights front fixed, rear Micrometer adjustable for windage and elevation.  Weight 2 lbs 6 oz.







Llama model XXVIII 22 lr.
6 shot with 2" 3 1/4" and 6" barrels, walnut checkered grips, front sights are fixed and the rear is a micrometer click sight with windage and elevation being adjustable

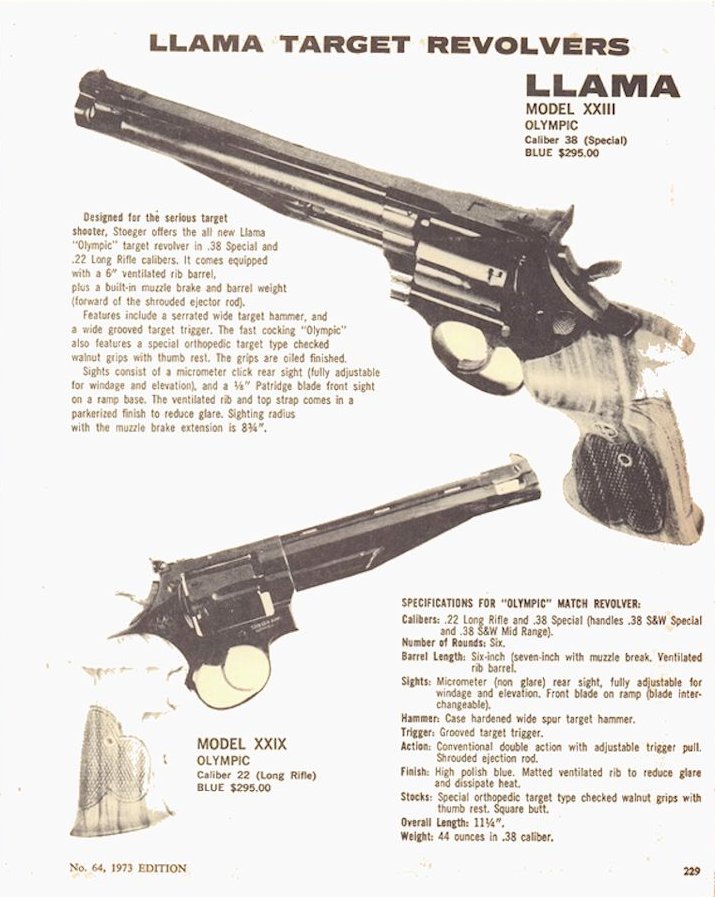

Llama model XXIX 22lr Olympic
Barrel length 6", sights are Micrometer fully adjustable for windage and elevation, hammer is case hardened with wide spur, trigger is grooved, conventiaal double action with adjustable trigger, Grips
are special orthopedic target type with thumb rest.  With or without muzzle break.

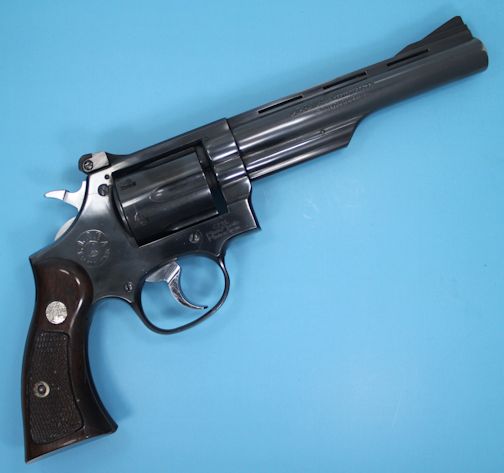

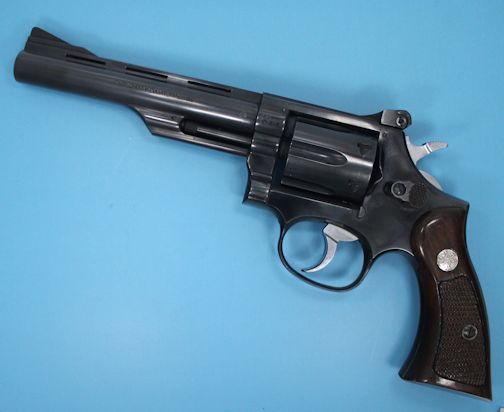

Comanche I
22 lr
The comanche I, has a frame that is large enough for the 38 Special or the .357 Magnum. It is
forged high tensile strength steel with serrated front and back straps.  It is double action with a floating firing pin, wide grooved target trigger, wide spur hammer with serrated grip surface, and case hardened.  Square notched rear sight with windage and elevation adjustments, 4 or 6" barrel, oversized target grips or as you see them in the pictures.  Weight is 2 lbs 8 ozs.







Llama also made revolvers for Franchi, marked as Franchi-Llama
