The
specifications given on these guns are
very accurate measurements for the guns shown and not necessarily what
would
be on other guns of the same brand.
A.A.
- Tradename of Azanza y Arrizabalaga.
Azanza
& Arrizabalaga of Eibar, Spain.
Operated during the First World War, manufacturing automatic pistols of
the Ruby pattern and continued after the war. Total number
produced
for France 40,000. They also manufactured a gun called Reims
which
came in 6.35 and 7.65. It is not confirmed, but thought, that
they
produced this gun early and French soldiers were themselves buying them
before the French government did.
(Numbers
quoted are from the Archivo Municipal
de Eibar)

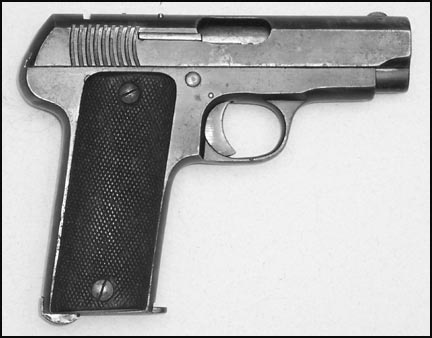

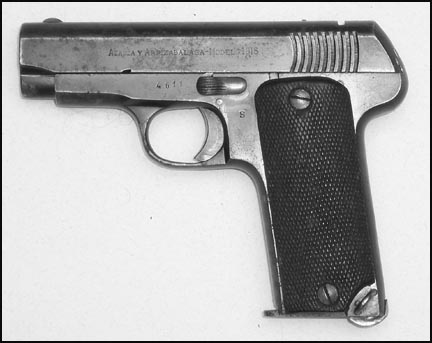

Azanza
y Arrizabalaga Model 1915-no code


Caliber:
7.65mm - .32acp
Overall
Length: 6.150"
Height:
4.90"
Barrel:
3.50
Weight:
1lb 13.3oz
Sights:
fixed
Magazine
Capacity: 9 round
Magazine
Release: bottom of frame
Slide hold
open Feature: none
Grips:
Checkered Walnut
Safety:
center of frame

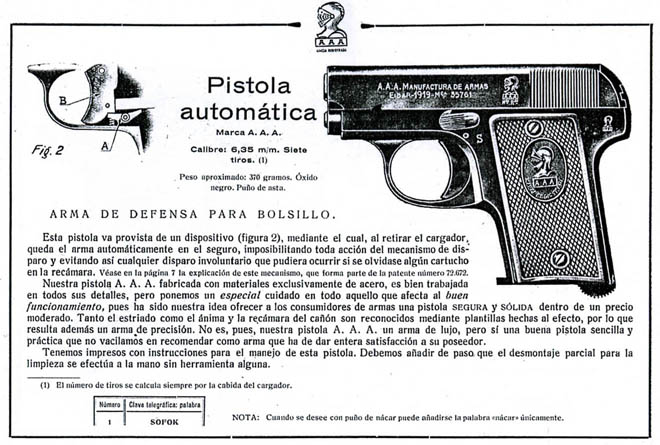

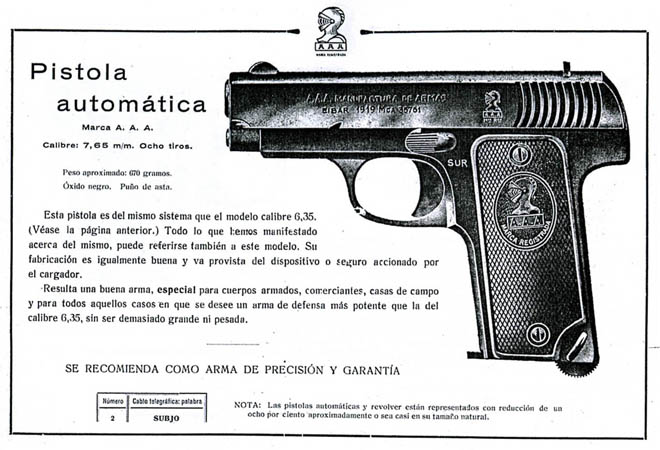

Pages
from the A. Aldazabal of Eibar, Spain
catalog from 1920

Page
6
